How We Enabled Internet Access Inside a Private VPC Subnet Using NAT

Delivering modern apps securely in AWS often requires placing critical resources inside private subnets — for example, EC2 app servers, Lambda functions, or RDS databases.

But here’s the challenge:
These resources can’t directly access the internet.
And yet, they often need outbound connectivity (e.g., downloading packages, calling third-party APIs).

This blog explains how we solved that problem at scale using NAT Gateway.

---

The Problem

1. Private Subnet Isolation

   • By design, private subnets cannot route traffic to the Internet Gateway.

   • EC2 or Lambda inside them had no internet access.

2. Broken External Calls

   • Our workloads needed outbound internet:

     • EC2 instances → install security patches.

     • Lambdas → call Firebase/FCM APIs.

   • Without internet, everything failed.

3. Direct IGW Not an Option

   • Attaching Internet Gateway directly to private subnet would expose resources.

   • Security rules prevented that.

---

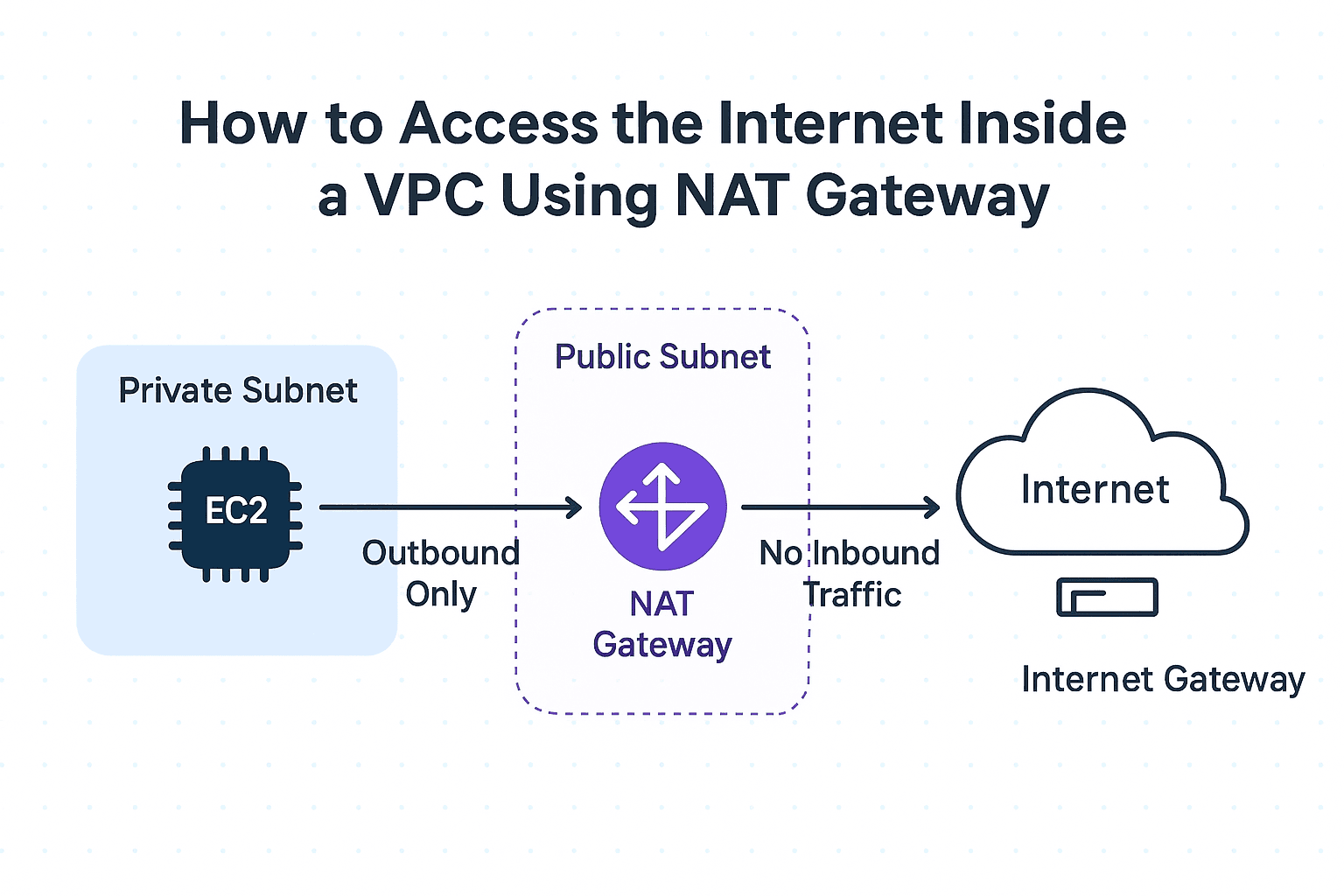

Step 1 — Introducing NAT Gateway

We deployed a NAT Gateway in the public subnet of our VPC.

• NAT Gateway gets an Elastic IP.

• It can reach the internet via the Internet Gateway.

Private subnet instances send traffic → NAT Gateway → Internet.
Inbound traffic from the internet is blocked.

---

Step 2 — Updating Private Subnet Route Tables

For each private subnet, we updated the route table:

• Default route 0.0.0.0/0 → NAT Gateway.

• Internal traffic (10.0.0.0/16) still routes locally within the VPC.

This gave private resources outbound internet access while keeping them hidden.

---

Step 3 — Testing with EC2 in Private Subnet

We launched an EC2 in the private subnet and verified connectivity:

ping google.com
sudo yum update -y
curl https://api.github.com

Outbound requests succeeded.
Inbound requests from internet were blocked — exactly what we wanted.

---

Final Architecture Diagram

                   +-----------------------+
                   |       Internet        |
                   +-----------+-----------+
                               |
                        (Internet Gateway)
                               |
                   +-----------+-----------+
                   |       Public Subnet   |
                   |  NAT Gateway + EIP    |
                   +-----------+-----------+
                               |
                    Route to NAT Gateway
                               |
                   +-----------+-----------+
                   |      Private Subnet   |
                   |  EC2 / Lambda / RDS   |
                   +-----------------------+

---

Conclusion

By introducing a NAT Gateway, we achieved:

• Secure isolation: Private subnets remain unreachable from the internet.

• Controlled outbound: Instances can fetch updates, call APIs, or access S3.

• Scalability: Fully managed by AWS (no manual patching or scaling).

Today, our workloads run inside private subnets with:

• Private, low-latency access to databases inside the VPC.

• Outbound internet connectivity for external APIs via NAT Gateway.

This simple design pattern is a must-know for any AWS-based architecture where you want security + flexibility.
